Description for 1794-IE8
1794 FLEX, FLEX EX, FLEX XT I/O SYSTEM, ANALOG INPUT MODULES, 8 SINGLE-ENDED INPUTS

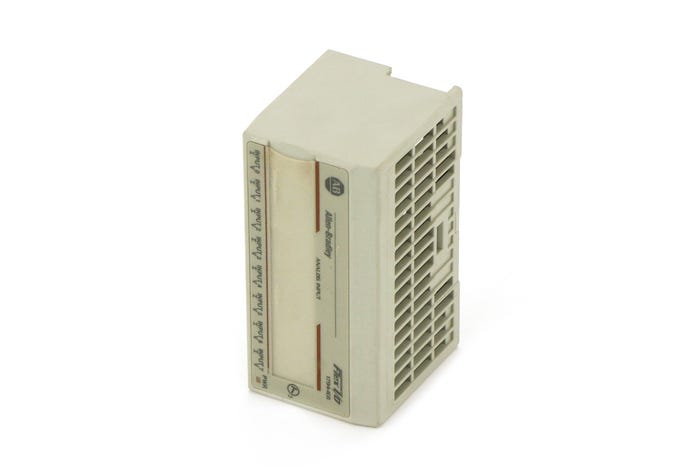

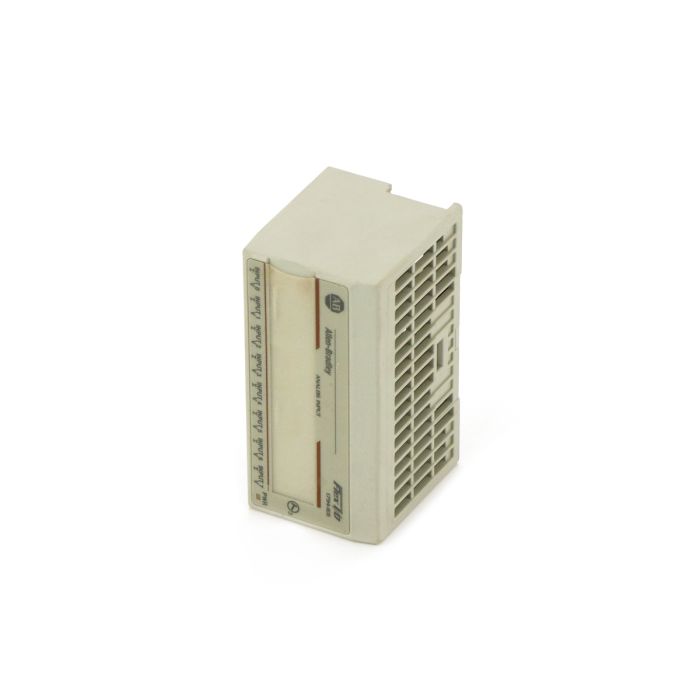

Allen-Bradley 1794-IE8 – FLEX I/O 8-Channel Analog Input Module
The Allen-Bradley 1794-IE8 is an 8-channel analog input module from the FLEX I/O series, designed to interface analog signals with Allen-Bradley programmable controllers. It supports various voltage and current input ranges, making it suitable for diverse industrial applications.
Technical Specifications:
• Number of Inputs: 8 single-ended, non-isolated channels
• Input Ranges (user-configurable):
o Voltage: ±10V, 0–10V
o Current: 0–20 mA, 4–20 mA
• Resolution:
o Voltage: 12 bits unipolar, 11 bits plus sign bipolar
o Current: 5.13 µA/count
• Conversion Type: Successive approximation
• Conversion Rate: 256 µs for all channels
• Input Impedance:
o Voltage: 100 kΩ
o Current: 238 Ω
• Power Supply: 24V DC nominal (10.5–31.2V DC), 60 mA
• Isolation Voltage: 50V continuous between field side and system side
• Dimensions (HxWxD): 46 x 94 x 53 mm (1.8 x 3.7 x 2.1 in.)
• Recommended Terminal Bases: 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS, 1794-TBKD, 1794-TB37DS
• Certifications: CE, c-UL-us, KCC, RCM, CI
Key Advantages:
• High Channel Density: Provides 8 analog input channels in a compact module, optimizing space in control panels.
• Flexible Configuration: Supports multiple voltage and current input ranges, allowing adaptability to various sensors and signal types.
• Fast Conversion Rate: Ensures timely data acquisition with a conversion rate of 256 µs for all channels.
• Easy Integration: Compatible with Allen-Bradley programmable controllers and FLEX I/O systems, facilitating seamless integration.
• Robust Design: Engineered to operate reliably in industrial environments, with appropriate certifications for safety and performance.
The Allen-Bradley 1794-IE8 module is a versatile and reliable solution for acquiring analog signals in industrial automation systems, offering high performance and flexibility to meet various application needs.
The Allen-Bradley 1794-IE8 is an 8-channel analog input module from the FLEX I/O series, designed to interface analog signals with Allen-Bradley programmable controllers. It supports various voltage and current input ranges, making it suitable for diverse industrial applications.
Technical Specifications:
• Number of Inputs: 8 single-ended, non-isolated channels
• Input Ranges (user-configurable):
o Voltage: ±10V, 0–10V
o Current: 0–20 mA, 4–20 mA
• Resolution:
o Voltage: 12 bits unipolar, 11 bits plus sign bipolar
o Current: 5.13 µA/count
• Conversion Type: Successive approximation
• Conversion Rate: 256 µs for all channels
• Input Impedance:
o Voltage: 100 kΩ
o Current: 238 Ω
• Power Supply: 24V DC nominal (10.5–31.2V DC), 60 mA
• Isolation Voltage: 50V continuous between field side and system side
• Dimensions (HxWxD): 46 x 94 x 53 mm (1.8 x 3.7 x 2.1 in.)
• Recommended Terminal Bases: 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS, 1794-TBKD, 1794-TB37DS
• Certifications: CE, c-UL-us, KCC, RCM, CI
Key Advantages:
• High Channel Density: Provides 8 analog input channels in a compact module, optimizing space in control panels.
• Flexible Configuration: Supports multiple voltage and current input ranges, allowing adaptability to various sensors and signal types.
• Fast Conversion Rate: Ensures timely data acquisition with a conversion rate of 256 µs for all channels.
• Easy Integration: Compatible with Allen-Bradley programmable controllers and FLEX I/O systems, facilitating seamless integration.
• Robust Design: Engineered to operate reliably in industrial environments, with appropriate certifications for safety and performance.
The Allen-Bradley 1794-IE8 module is a versatile and reliable solution for acquiring analog signals in industrial automation systems, offering high performance and flexibility to meet various application needs.
JC-Electronics is not an official authorized distributor for ALLEN-BRADLEY. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.
Positive Results
When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:
CO2 eq
Resource use minerals and metals
Water use
-90%
-98%
-94%
Specifications
Manufacturer:
ALLEN-BRADLEY
Range:
Flex
Type of product:
Analog modules
Product phase:
Active
Dimensions:
25,00 x 12,00 x 10,00
Weight:
1.10 lbs
Commodity Code:
85371091
ECCN number:
N
