6AG1124-0XC02-4AX0

Repair

Select service ( £4,223.88 )

Description for 6AG1124-0XC02-4AX0

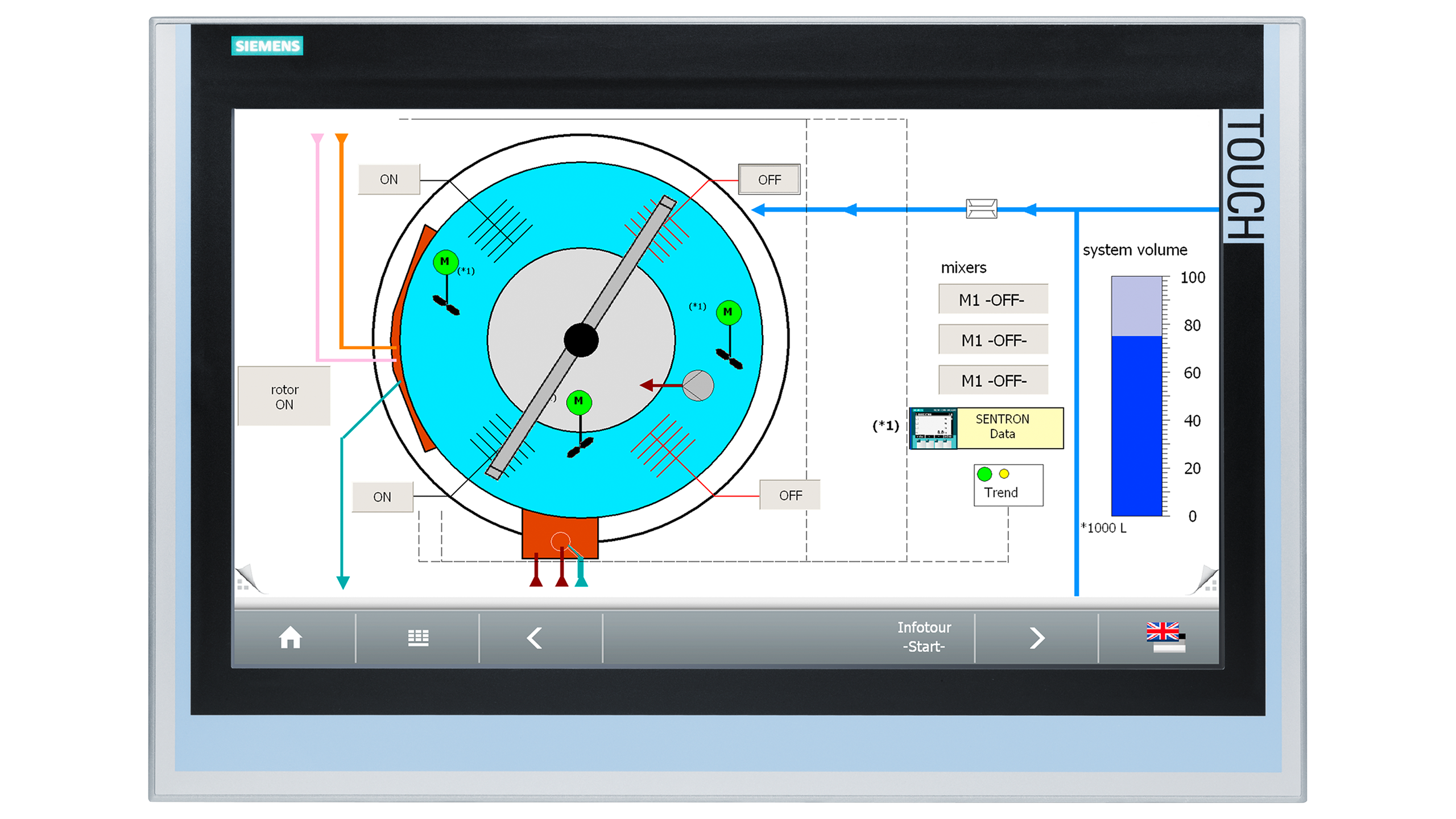

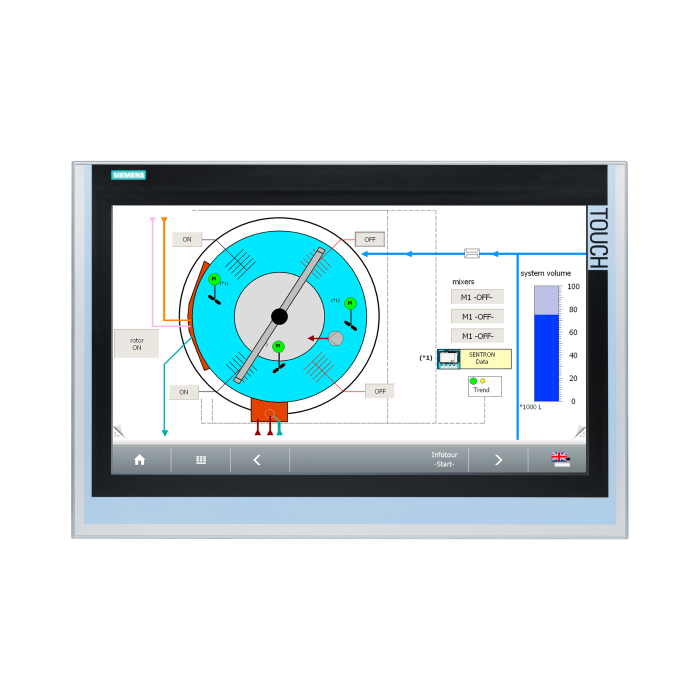

SIPLUS HMI TP2200 COMFORT FOR MEDIAL STRESS WITH CONFORMAL COATING BASED ON 6AV2124-0XC02-0AX0

The SIPLUS HMI TP2200 Comfort is specifically designed for applications with medial stress, providing a robust solution with a conformal coating. Manufactured by Siemens, this versatile touchscreen panel supports a supply voltage of 24V DC and features a stunning 21.5" TFT display with a resolution of 1920 x 1080 pixels, ensuring vibrant visuals and user interaction.

Equipped with 16,777,216 colours, the display offers exceptional clarity and precision. The device boasts a generous user memory of 24576 kbyte, allowing extensive project data storage. Designed for seamless integration, it supports protocols like Profinet and Profibus, making it an ideal choice for diverse industrial applications.

With dimensions of 66.50 x 52.00 x 22.00 mm and a weight of only 9.28 kg, the SIPLUS HMI is both compact and lightweight, capable of fitting into limited spaces. This phase-out product has been a reliable partner since its active status began in 2013, and although it has been phased out since 2019, it remains a valuable asset for any organization looking to upgrade its human-machine interface solutions.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-80%

Resource use minerals and metals

-99%

Water use

-86%

Specifications

Brands:

SIEMENS

Manufacturer:

Siemens

Range:

Siplus HMI

Subrange:

Comfort panels

Type of product:

Comfort panels

Supply voltage:

24V DC

Product phase:

Phase-Out

Supply voltage:

24V DC

Screen diagonal:

21.5

Type of display:

TFT

Display resolution:

1920 x 1080

IO link master:

With colour display:

Yes

Number of colours of the display:

16777216

Useful project memory/user memory:

24576

Supporting protocol:

PROFINET, PROFIBUS

Dimensions:

66,50 x 52,00 x 22,00

Weight:

20.46lbs

Commodity Code:

85371091

ECCN number:

5D002
