6AG4104-3KR54-4GC6_0

Siemens 6AG4104-3KR54-4GC6

Condition
How does requesting a repair work?
  1. Add the repair to your cart and complete your order
  2. You'll receive an RMA form by email
  3. Pack your product with the RMA form and send it to us
  4. We repair and test it, then return it in ~2 weeks
+ £250.00
Excl. Tax:
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

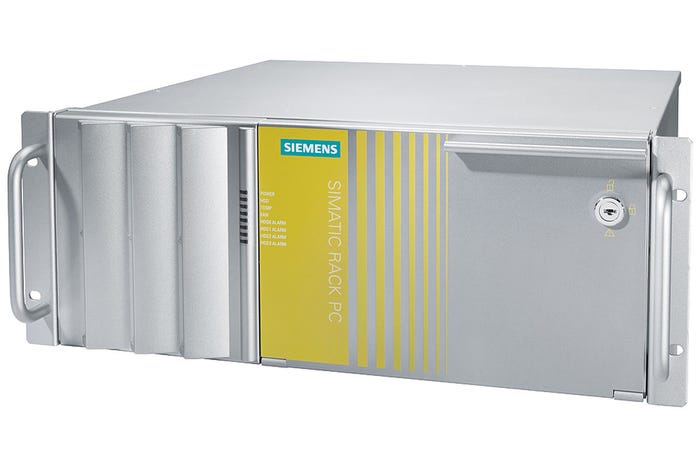

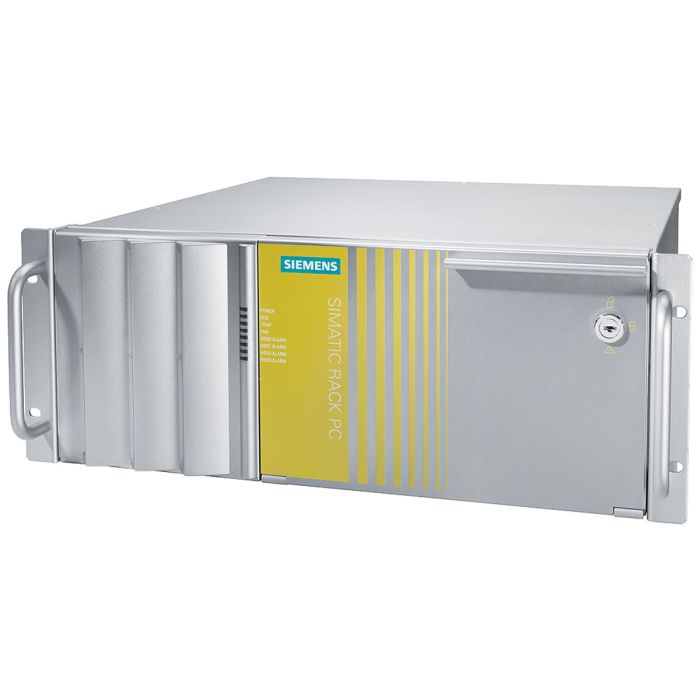

SIMATIC IPC547E (rack PC, 19", 4HU); Interfaces: 2x USB 3.0 front, 1x DVI-I, 6x USB 2.0 on the rear side, 2x PS/2, audio; 7 slots: 2x PCIe X16, 1x PCIE X8, 4x PCI; temperature and fan monitoring; Watchdog; card retainer Core I7-4770S (4C/8T, 3.1(3.9) GHz, 8 MB cache, IAMT), 2x Gbit Ethernet, 2x display ports V1.2, 2x USB 3.0 on the rear side, 1x USB 2.0 internal, 1x COM1 RAID1, 1 TB (2x 1 TB HDD, mirror disks) in removable frame; hot-swap, on the front and 1x 240 GB SSD (for operating system) in removable frame; on front; (OS if configured installed on SSD) 32 GB DDR3 SD-RAM (4x 8 GB), Dual Channel Enclosure painted, DVD +/-RW (SLIM) Serial (COM2)+parallel (LPT) and PCIE X16 graphics card (DH: 2x VGA O. 2x DVI-D); 512 MB Windows Server 2012 R2 Standard edition incl. 5 clients MUI (de, en, fr, es, it), 64 bit SIMATIC IPC DIAGMONITOR V4.5 &; Image&Partition Creator V3.4 enclosed 2x 100/240V AC redundant industrial power supply unit; without line cable

The SIMATIC IPC547E is a robust and efficient rack PC designed to meet the demanding requirements of the electrical industry. With a compact 19" 4U form factor, this powerful workstation is equipped with essential features including 2x USB 3.0 front ports and multiple connectivity options.

Engineered for high performance, it incorporates a Core i7-4770S processor with 4 cores and 8 threads, ensuring quick data processing and multitasking capabilities. The unit supports 32 GB DDR3 SD-RAM and boasts a comprehensive array of interfaces, including 6x USB 2.0, 2x DVI-I, and both COM and parallel ports.

For enhanced reliability, it features temperature and fan monitoring, a Watchdog timer, and a RAID 1 configuration with 2x 1 TB HDDs for redundant data protection. The included DVD +/-RW drive and customizable expansion slots allow for versatile applications.

Manufactured in Germany, the SIMATIC IPC547E is ideal for industrial environments. The system comes pre-installed with Windows Server 2012 R2 Standard edition supporting multiple languages, enhancing accessibility for clients.

General
Manufacturer:
Siemens
Range:
SIMATIC RACK PC
Subrange:
IPC547E
Type of product:
PC racks
PLM
Product phase:
Phase-Out
Logistics
Dimensions:
67,00 x 83,00 x 11,50
Weight:
37.48lbs
Commodity Code:
85371091
ECCN number:
N
