Description for 6AV2124-0JC01-0AX0

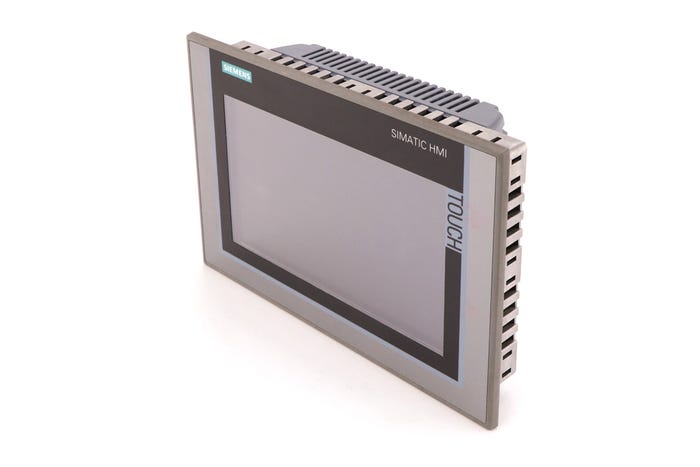

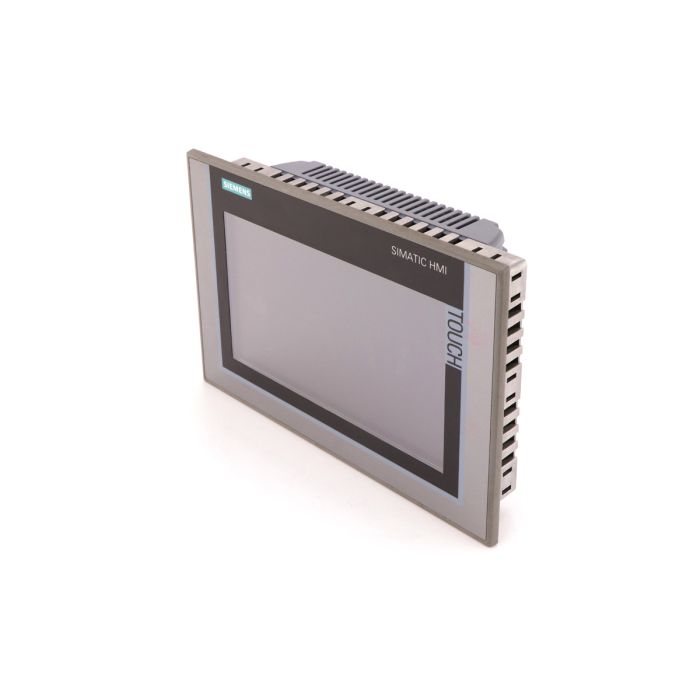

SIMATIC HMI TP900 Comfort, Comfort Panel, touch operation, 9" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11 Siemens SIMATIC HMI TP900 Comfort Panel (6AV2124-0JC01-0AX0)

The Siemens SIMATIC TP900 Comfort Panel is a high-performance Human Machine Interface (HMI) designed for advanced industrial automation applications. Featuring a 9-inch widescreen TFT display with 16 million colors, it provides intuitive touch operation and seamless integration into PROFINET and MPI/PROFIBUS DP networks.

Technical Specifications:
• Display: 9" widescreen TFT, 800 x 480 pixels, 16 million colors
• Touchscreen: Analog-resistive
• Processor: x86 architecture
• User Memory: 12 MB
• Operating System: Windows CE 6.0
• Interfaces:
o 2 x PROFINET (RJ45)
o 1 x MPI/PROFIBUS DP
o 2 x USB 2.0
o 1 x RS422/485
o 2 x SD card slots
• Power Supply: 24 V DC (19.2–28.8 V DC)
• Power Consumption: Approximately 18 W
• Dimensions (W x H x D): 274 x 190 x 62.7 mm
• Weight: Approximately 1.9 kg
• Protection Rating: Front: IP65; Rear: IP20
• Certifications: CE, cULus, RCM, KC, ATEX Zone 2/22, IECEx Zone 2/22, Marine approvals (GL, ABS, BV, DNV, LRS, NK)
• Configuration Software: WinCC Comfort V11 or higher

Key Advantages:
• High-Resolution Display: The 9-inch TFT screen with 16 million colors ensures clear and detailed visualization of processes.
• Versatile Connectivity: Multiple interfaces, including PROFINET and MPI/PROFIBUS DP, allow for flexible integration into various network architectures.
• Robust Design: With an IP65-rated front panel and certifications for use in hazardous areas, the TP900 is built for demanding industrial environments.
• Advanced Functionality: Supports features like recipe management, alarm handling, and trend analysis, enhancing operational efficiency.
• User-Friendly Configuration: Compatible with Siemens' TIA Portal software, facilitating easy setup and maintenance.

The Siemens SIMATIC TP900 Comfort Panel offers a reliable and efficient solution for monitoring and controlling industrial processes, combining advanced features with a user-friendly interface.

JC-Electronics is not an official authorized distributor for Siemens. The original manufacturer's warranty does not apply. Instead, we offer you a 2-year warranty according to our JCertified guidelines.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-80%

Resource use minerals and metals

-99%

Water use

-86%

Specifications

Manufacturer:

Siemens

Range:

SIMATIC HMI

Subrange:

Comfort panels

Type of product:

Comfort panels

Supply voltage:

24V DC

Product phase:

Active

Supply voltage:

24V DC

Screen diagonal:

Type of display:

TFT

Display resolution:

800 x 480

Type of operation:

Touch

IO link master:

Yes

With colour display:

Yes

Number of colours of the display:

16777216

Useful project memory/user memory:

12288

Supporting protocol:

PROFINET, PROFIBUS

Dimensions:

49,80 x 36,00 x 12,20

Weight:

5.53 lbs

Commodity Code:

85371091

ECCN number:

5A992
