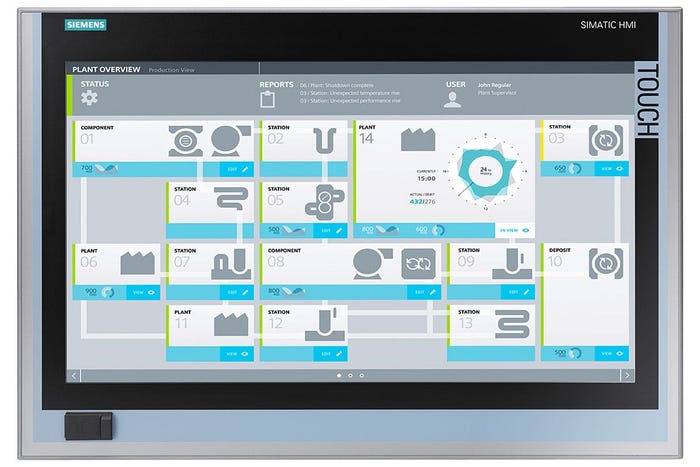

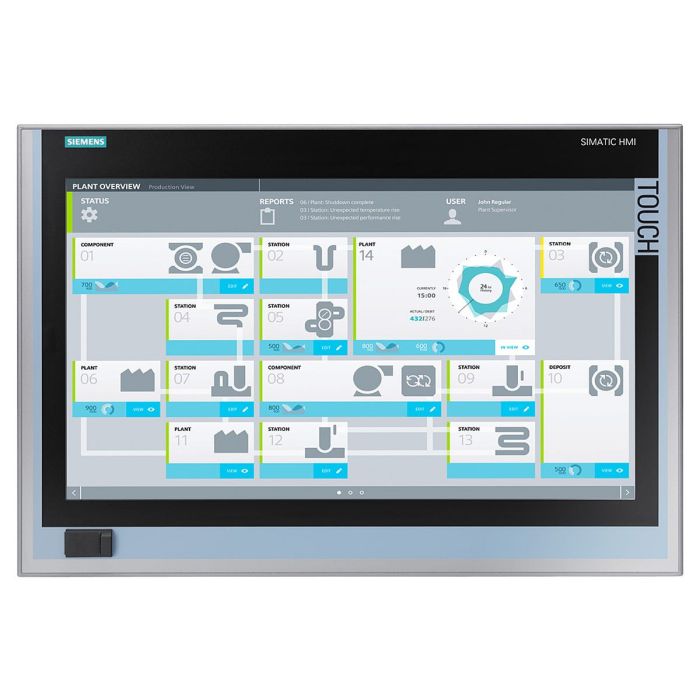

Siemens 6AV7260-5JK41-0BX6

SIMATIC IPC677D (PANEL PC), 2X10/100/1000 MBIT/S ETHERNET; 4X USB…
Condition
How does requesting a repair work?
  1. Add the repair to your cart and complete your order
  2. You'll receive an RMA form by email
  3. Pack your product with the RMA form and send it to us
  4. We repair and test it, then return it in 3 weeks
+ £398.27
Excl. Tax
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

The SIMATIC IPC677D (PANEL PC) is a robust and versatile solution designed for industrial applications, featuring dual 10/100/1000 Mbit/s Ethernet connectivity and multiple USB 3.0 ports for enhanced performance. With four USB ports and one serial COM1 port, this panel PC ensures swift data transfer and reliable communication in demanding environments.

Equipped with a powerful XEON E3-1268LV3 processor, boasting four cores and eight threads with a base clock speed of 2.3 GHz (up to 3.3 GHz), and an 8 MB cache, this device delivers exceptional processing power. Its industry-leading 22-inch multitouch display (1920x1080 resolution) offers intuitive operation, and the onboard RAID controller enhances data security and performance.

For reliable monitoring, the SIMATIC IPC677D includes a watchdog, temperature, and fan monitoring systems, ensuring operational stability and reducing downtime. The system is designed to support PROFINET with three ports, compatible with CP 1616, providing seamless integration into automation systems.

Manufactured in Germany, it sustains the highest quality standards and is ideal for various sectors needing advanced PC panel solutions. The device is compatible with Windows 7 Ultimate 64-bit, making it an excellent choice for industries requiring legacy support.

SIMATIC IPC677D (PANEL PC), 2X10/100/1000 MBIT/S ETHERNET; 4X USB V3.0, 1X SERIAL (COM1); WATCHDOG, TEMPERATURE AND FAN MONITORING; RAID CONTROLLER ONBOARD; 22" MULTITOUCH (1920X 1080) XEON E3-1268LV3 (4C/8T, 2.3 (3.3) GHZ, 8 MB CACHE VT-D, AMT); PROFINET (IRT, 3 PORTS, CP 1616-COMPATIBLE); 2 MB BUFFERED SRAM RAID1 2X 320 GB HDD SATA (2.5") IN REMOVABLE FRAME 16 GB DDR3 1600 DIMM; 1X PCIE (X16); 1X PCI WITHOUT EXPANSION (HW) WINDOWS 7 ULTIMATE 64 BIT SP1, MUI (DE, DE, FR, EN FR, SP, IT) WITHOUT EXPANSION (SOFTWARE) 24 V DC INDUSTRIAL POWER SUPPLY
General
Manufacturer:
Siemens
Range:
Simatic Panel PC
Subrange:
IPC
Type of product:
PC panels
PLM
Product phase:
Phase-Out
Logistics
Dimensions:
67,00 x 83,00 x 11,50
Weight:
37.48lbs
Commodity Code:
85371098
ECCN number:
N
