6SL3210-1KE22-6AP1_0

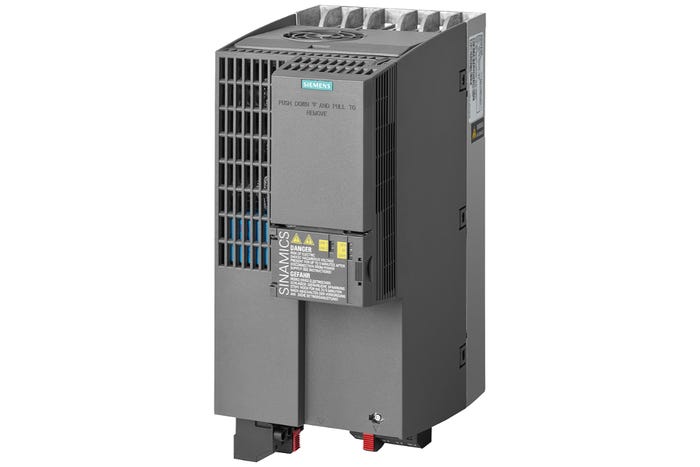

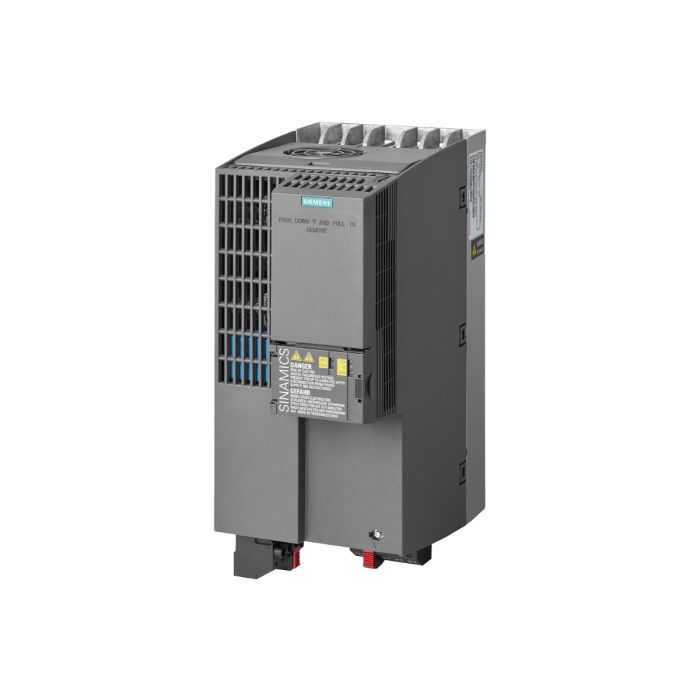

Siemens 6SL3210-1KE22-6AP1

SINAMICS G120C RATED POWER 11,0KW W
Condition
How does requesting a repair work?
  1. Add the repair to your cart and complete your order
  2. You'll receive an RMA form by email
  3. Pack your product with the RMA form and send it to us
  4. We repair and test it, then return it in ~2 weeks
+ £250.00
Excl. Tax:
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

SINAMICS G120C RATED POWER 11,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295X140X203(HXWXD) EXTERNAL 24V

Discover the SINAMICS G120C, a robust and efficient compact control unit designed by Siemens. With a rated power of 11.0 kW and capable of handling a temporary overload of 150% for 3 seconds, this unit is ideal for demanding applications in the electrical industry.

Operating at a main voltage range of 380-480V AC and a frequency of 50/60 Hz, the SINAMICS G120C is equipped with an integrated A-class filter, ensuring minimized electrical interference. It features a comprehensive I/O interface with 6 digital inputs, 2 digital outputs, 1 analog input, and 1 analog output.

Notably, this unit includes a Safe Torque Off function, enhancing operational safety. Its protection rating of IP20 ensures it is suitable for various environments, while its compact dimensions of 14.00 x 20.30 x 29.50 cm make it a space-efficient solution.

For seamless integration, the SINAMICS G120C also comes with an integrated fieldbus for PROFIBUS-DP. Make this reliable, high-performance control unit a key component of your electrical systems, driving efficiency and safety in your operations.

General
Brands:
SIEMENS
Manufacturer:
Siemens
Range:
SINAMICS
Subrange:
G120C
Type of product:
Compact control units
PLM
Product phase:
Active
Drive
Main Voltage:
380-480V AC
Main frequency:
50/60
Number of phases input:
3
Max. output frequency:
550
Max. output voltage:
550
Nom. output current:
26
Nom. power rating:
7.5
Degree of protection:
IP20
Degree of protection:
IP20
Logistics
Dimensions:
14,00 x 20,30 x 29,50
Weight:
11.90lbs
Commodity Code:
85044086
ECCN number:
3A225
