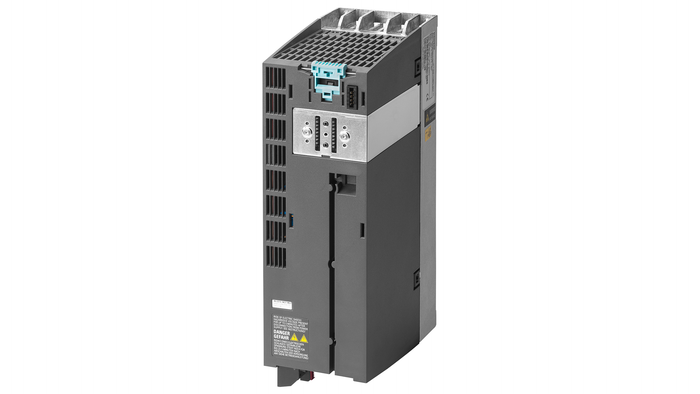

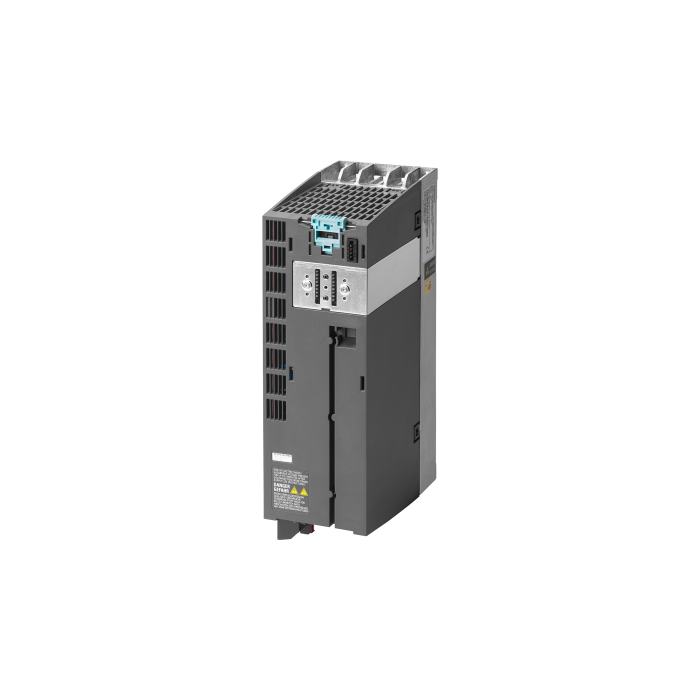

Siemens 6SL3210-1NE17-7AG1

SINAMICS G120 Power Module PM230 with integrated Class A filter…
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Condition
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

The SINAMICS G120 Power Module PM230 is engineered for versatility and efficiency in your industrial applications. With an integrated Class A filter, this module ensures optimal performance while maintaining compliance with electromagnetic compatibility standards.

Designed to operate between 380-480V AC and supporting a maximum output frequency of 550 Hz, it can handle varying loads with ease. Its robust power specifications include a nominal power rating of 2.2 kW and a nominal output current of 7.7 A. Additionally, it features a low overload capability of 3 kW at 150% for 3 seconds, which allows for brief spikes in demand without compromising performance.

Constructed with a degree of protection rated at IP20, the SINAMICS G120 is suitable for environments that do not expose the device to excessive dust or moisture. The module also operates efficiently within an ambient temperature range of 0 to +40°C.

Manufactured by Siemens in Germany, this power module is compatible with control units CU240B/E-2 and CU230P-2, and requires firmware version V4.4 or higher for optimal operation.

Enhance your machinery with the reliability and performance of the SINAMICS G120 Power Module PM230, a trusted solution for modern electric systems.

SINAMICS G120 Power Module PM230 with integrated Class A filter Degree of protection IP20 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 3kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature 0 to +40 -¦C (LO) 196x 73x 165 (HxWxD), FSA without Control Unit and operating unit released for CU240B/E-2 and CU230P-2 Firmware version V4.4 or higher
General
Manufacturer:
Siemens
Range:
SINAMICS
Subrange:
G120
Type of product:
Power modules
PLM
Product phase:
Active
Drive
Main Voltage:
380-480V AC
Main frequency:
50/60
Number of phases input:
3
Max. output frequency:
550
Max. output voltage:
550
Nom. output current:
7.7
Nom. power rating:
2.2
Degree of protection:
IP20
Degree of protection:
IP20
Logistics
Dimensions:
7,30 x 16,50 x 19,60
Weight:
3.97lbs
Commodity Code:
85044095
ECCN number:
N
EAN:
4042948671252
