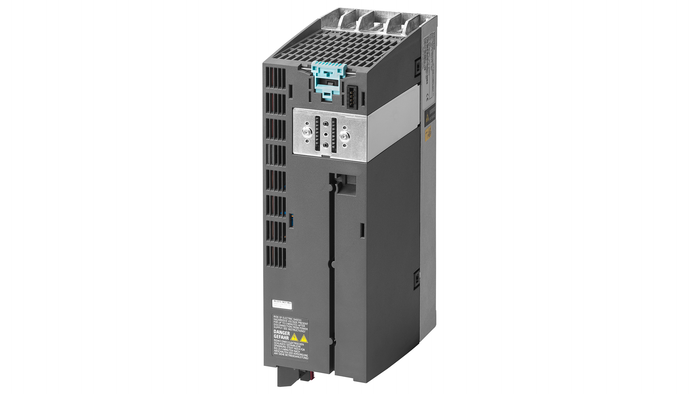

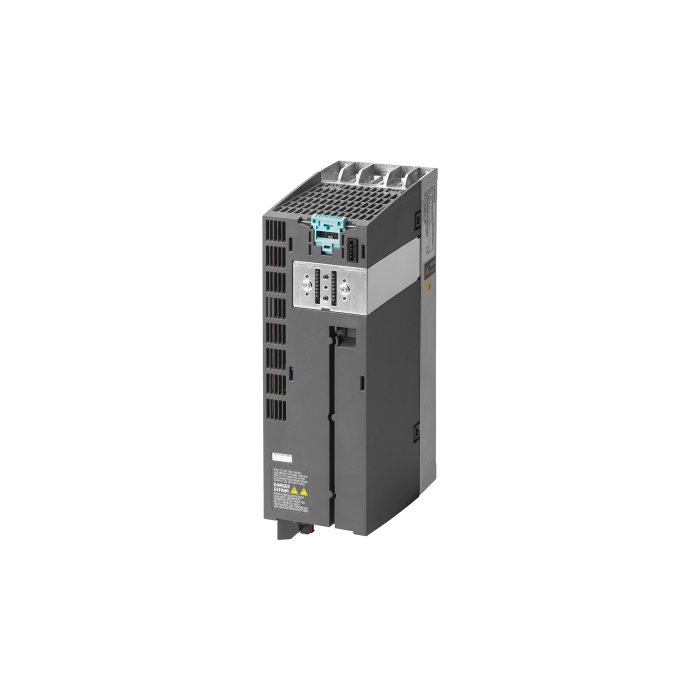

Siemens 6SL3210-1NE21-3AG1

SINAMICS G120 Power Module PM230 with integrated Class A filter…
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Condition
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

The SINAMICS G120 Power Module PM230 is engineered for optimal performance in demanding environments. This robust unit features an integrated Class A filter, ensuring compliance with stringent electrical standards. With a degree of protection rated at IP20, it is designed to handle a main voltage range of 380-480V AC (+10/-10%) and a frequency range of 47-63 Hz.

Capable of managing low overloads of up to 5.5 kW for short durations, the PM230 unit can sustain 150% of its rated capacity for 3 seconds, 110% for 57 seconds, and allows standard operation at 100% for up to 240 seconds. Operating in ambient temperatures from 0°C to +40°C (LO), this power module supports a maximum output frequency of 550 Hz and an output voltage of up to 550 V.

Designed without a control unit and compatible with CU240B/E-2 and CU230P-2 firmware version V4.4 or higher, this unit stands at a compact dimension of 292x100x165 mm (HxWxD). It’s the ideal solution for businesses looking to enhance their operational efficiency while maintaining reliability.

SINAMICS G120 Power Module PM230 with integrated Class A filter Degree of protection IP20 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 5.5kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature 0 to +40 -¦C (LO) 292x 100x 165 (HxWxD), FSB without Control Unit and operating unit released for CU240B/E-2 and CU230P-2 Firmware version V4.4 or higher
General
Manufacturer:
Siemens
Range:
SINAMICS
Subrange:
G120
Type of product:
Power modules
PLM
Product phase:
Active
Drive
Main Voltage:
380-480V AC
Main frequency:
50/60
Number of phases input:
3
Max. output frequency:
550
Max. output voltage:
550
Nom. output current:
13.2
Nom. power rating:
4
Degree of protection:
IP20
Degree of protection:
IP20
Logistics
Dimensions:
10,00 x 16,50 x 29,20
Weight:
7.05lbs
Commodity Code:
85044095
ECCN number:
N
EAN:
4042948671290
