Siemens 6SL3210-1PB15-5AL0

SINAMICS POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT…

Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Condition

Repair (incl. JCertified refurbishment)

Unavailable

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

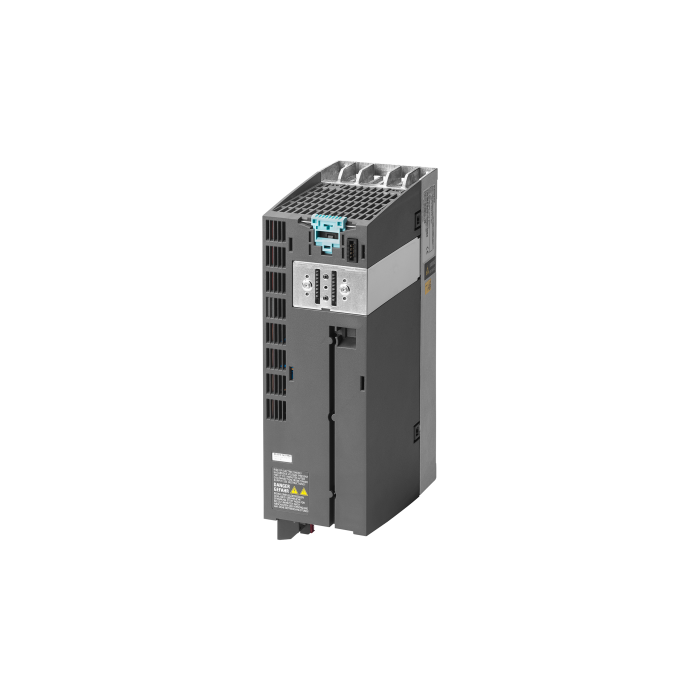

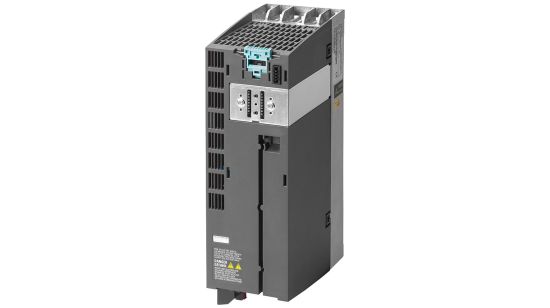

The SINAMICS POWER MODULE PM240-2, manufactured by Siemens, is a highly efficient power solution for various applications in the electrical industry. This module features a built-in Class A filter and a braking chopper, ensuring optimal performance.

With a main voltage range of 200-240V AC and a frequency of 50/60 Hz, this power module is designed to handle demanding operational requirements. It supports a maximum output frequency of 550 Hz and a maximum output voltage of 550 V, making it suitable for a variety of industrial applications.

Its robust design allows for a high overload capability of 0.75 kW for 200% overload for up to 3 seconds, while the low overload capability reaches 1.1 kW for 150% overload for the same duration. The module operates efficiently within a temperature range of -10 to +50 degrees Celsius, ensuring reliability under diverse conditions.

Additionally, the SINAMICS PM240-2 module is IP20 rated, providing an adequate level of protection for internal components. Whether you need to optimize your current system or implement a new one, this power module is a dependable choice.

SINAMICS POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 1/3AC200-240V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 0,75KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 1,1KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

General

Manufacturer:

Siemens

Range:

SINAMICS

Type of product:

Power modules

PLM

Product phase:

Active

Drive

Main Voltage:

200-240V AC

Main frequency:

50/60

Number of phases input:

Max. output frequency:

550

Max. output voltage:

550

Nom. output current:

Degree of protection:

IP20

Degree of protection:

IP20

Logistics

Dimensions:

10,00 x 16,50 x 29,20

Weight:

6.83lbs

Commodity Code:

85044095

ECCN number:

3A225

EAN:

4042948666326
