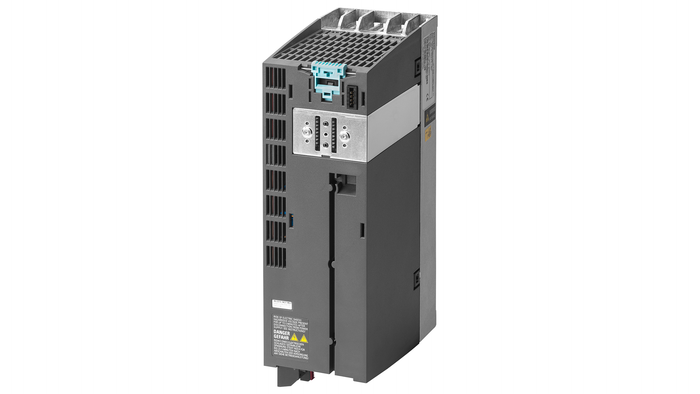

Siemens 6SL3210-1PB17-4UL0

SINAMICS POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING…
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Condition
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

The SINAMICS POWER MODULE PM240-2 is engineered to meet the high demands of the electrical industry. This power module operates without a filter and includes a built-in braking chopper, providing reliable performance in various applications. Designed for a main voltage of 200-240V AC with a frequency range of 50/60 Hz, it offers exceptional overload capabilities, accommodating high power demands with ease.

With a maximum output frequency of 550 Hz and a maximum output voltage of 550 V, it efficiently handles an output current of 7.4 A, ensuring optimal functionality across different operational conditions. The module boasts a nominal power rating of 1.1 kW, suitable for environments with ambient temperatures ranging from -10°C to +50°C.

Featuring an IP20 degree of protection, it is built for durability in moderate industrial settings. The compact dimensions of 291 x 100 x 165 mm make it a versatile choice for various installations. Recognized for its reliability and efficiency, the SINAMICS PM240-2 power module is an excellent choice for professionals seeking robust solutions in power management.

SINAMICS POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 1/3AC200-240V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 1,1KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 1,5KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6
General
Manufacturer:
Siemens
Range:
SINAMICS
Type of product:
Power modules
PLM
Product phase:
Active
Drive
Main Voltage:
200-240V AC
Main frequency:
50/60
Number of phases input:
1
Max. output frequency:
550
Max. output voltage:
550
Nom. output current:
7.4
Nom. power rating:
1.1
Degree of protection:
IP20
Degree of protection:
IP20
Logistics
Dimensions:
10,00 x 16,50 x 29,20
Weight:
5.95lbs
Commodity Code:
85044095
ECCN number:
3A225
EAN:
4042948666241
