6SL3210-1PE32-1UL0_0

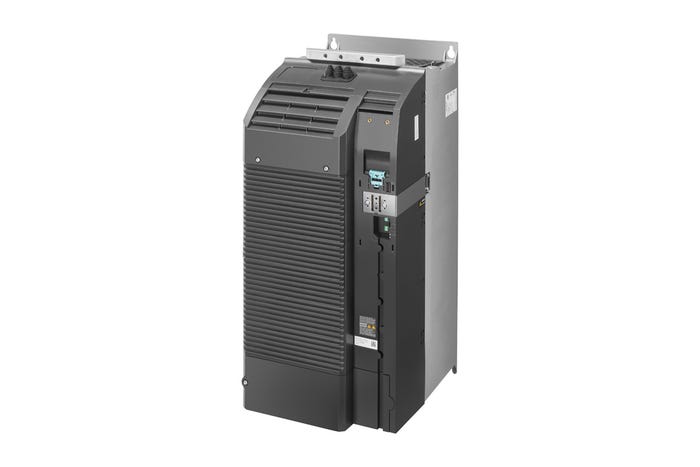

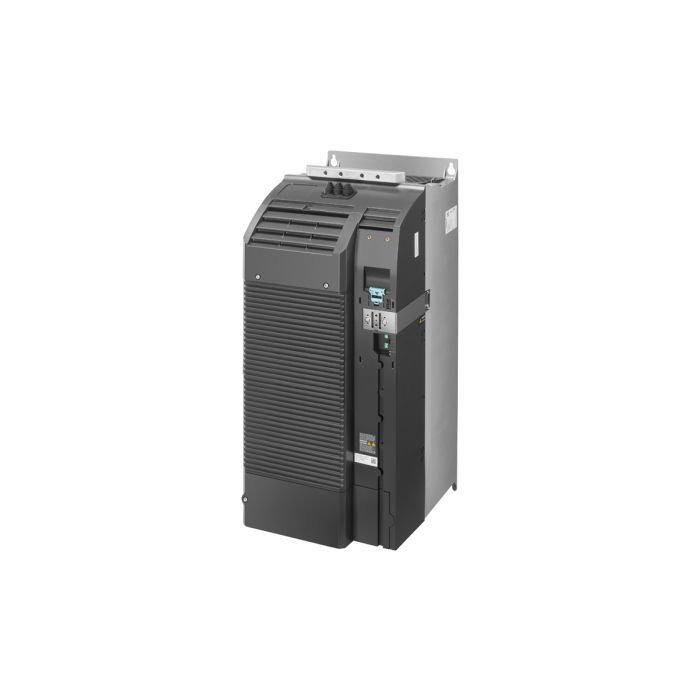

Siemens 6SL3210-1PE32-1UL0

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN…
Condition
How does requesting a repair work?
  1. Add the repair to your cart and complete your order
  2. You'll receive an RMA form by email
  3. Pack your product with the RMA form and send it to us
  4. We repair and test it, then return it in 3 weeks
+ £715.10
Cashback
Excl. Tax
Transport and Handling Information

The transportation costs depend on the destination, purchase price, weight, shipping speed, and whether it is a pallet order.

Express shipping and rush orders

With express shipping, the product is delivered faster. For products that are not yet ready for shipping, you can place a rush order. These products still need to be revised.

A rush order is ready for shipping within 2 business days and can then be shipped express. This can be selected during checkout.
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

Introducing the SINAMICS G120 POWER MODULE PM240-2, a robust solution designed for industrial applications needing reliable performance and high efficiency. This power module features an integrated braking chopper and operates within a voltage range of 380-480V AC. With a nominal power rating of 90 kW and a maximum output frequency of 550 Hz, it is engineered to handle the demands of modern electrical systems effortlessly.

The compact dimensions of 30.50 x 35.70 x 70.80 cm and a weight of 70.8 kg make it suitable for various installations, while its IP20 protection degree ensures durability in industrial environments. Designed for heavy-duty use, this module can deliver high overload performance of 90 kW for 200% for 3 seconds, making it ideal for applications requiring short bursts of high power.

With a wide operating temperature range of -20 to +50 degrees Celsius, the SINAMICS G120 POWER MODULE PM240-2 is optimized for reliability. The fully tested capabilities assure peak performance in your operations, making it a perfect choice for businesses seeking quality and efficiency.

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 90KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 110kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
General
Manufacturer:
Siemens
Range:
SINAMICS
Subrange:
G120
Type of product:
Power modules
PLM
Product phase:
Active
Drive
Main Voltage:
380-480V AC
Main frequency:
50/60
Number of phases input:
3
Max. output frequency:
550
Max. output voltage:
550
Nom. output current:
205
Nom. power rating:
90
Degree of protection:
IP20
Degree of protection:
IP20
Logistics
Dimensions:
30,50 x 35,70 x 70,80
Weight:
156.09lbs
Commodity Code:
85044086
ECCN number:
EAR99
EAN:
4042948668146
