Siemens 6SL3210-1PE33-0CL0

SINAMICS G120/S120 POWER MODULE PM2
Condition
How does requesting a repair work?
  1. Add the repair to your cart and complete your order
  2. You'll receive an RMA form by email
  3. Pack your product with the RMA form and send it to us
  4. We repair and test it, then return it in ~2 weeks
+ £919.10
Excl. Tax:
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

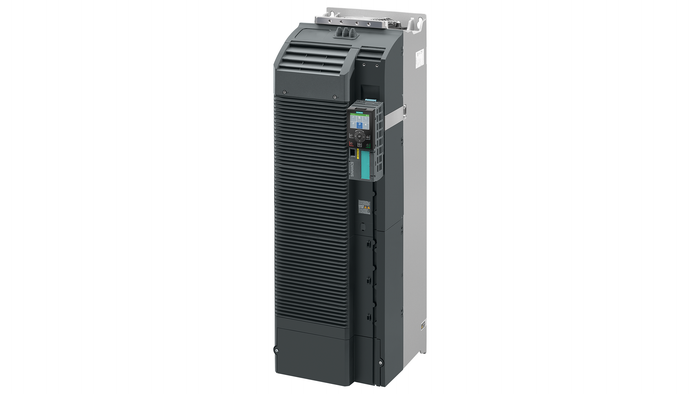

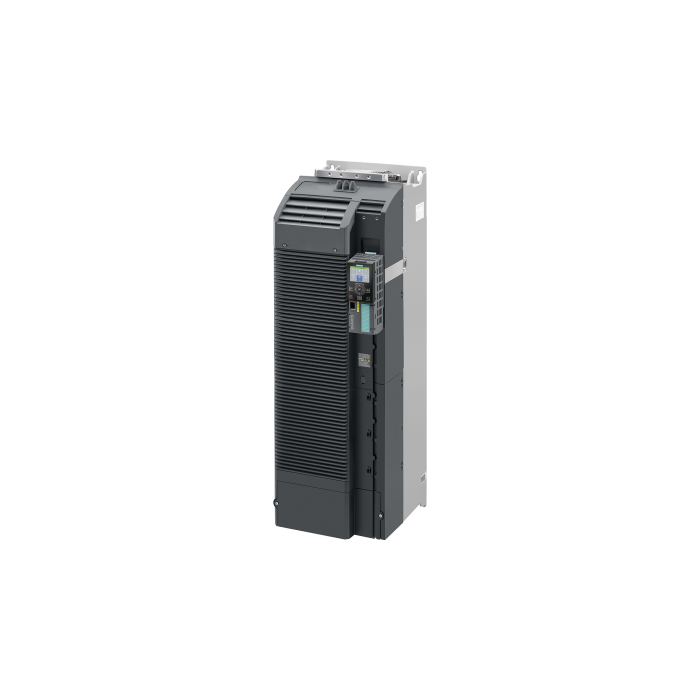

SINAMICS G120/S120 POWER MODULE PM240-2 FSG Integrated Filter EMC Class C3 WITH BUILT IN BRAKING CHOPPER 3AC380-480V+10/-10% 47-63Hz OUTPUT HIGH OVERLOAD: 132kW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 bis +50 DEG C (HO) OUTPUT LOW OVERLOAD: 160kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 bis +40 DEG C (LO) 1000x305x357 (HXWXD), FSG PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- Version V4.7 SP9 AND V5.1

Introducing the SINAMICS G120/S120 POWER MODULE PM240-2 FSG, a high-performance solution designed for demanding industrial applications. This power module integrates an EMC Class C3 filter and features a built-in braking chopper, ensuring efficient operation in a variety of conditions.

With a main voltage range of 380-480V AC and a frequency range of 50/60 Hz, this module is equipped to handle significant loads, with a nominal power rating of 132 kW. The impressive output capabilities include a high overload capacity of 132 kW for 200% for 3 seconds, making it ideal for heavy-duty tasks.

Constructed for durability, the SINAMICS PM240-2 operates efficiently in ambient temperatures from -20 to +50 degrees Celsius. Its compact dimensions of 100 x 305 x 357 mm (HxWxD) and IP20 protection class contribute to its robust design, making it suitable for various environments.

Manufactured by Siemens in Germany, this product is a reliable choice for companies seeking advanced power module solutions. Experience the difference with the SINAMICS G120/S120 PM240-2, the ultimate in performance and reliability.

General
Brands:
SIEMENS
Manufacturer:
Siemens
Range:
SINAMICS
Subrange:
G120
Type of product:
Power modules
PLM
Product phase:
Active
Drive
Main Voltage:
380-480V AC
Main frequency:
50/60
Number of phases input:
3
Max. output frequency:
550
Max. output voltage:
550
Nom. output current:
302
Nom. power rating:
132
Degree of protection:
IP20
Degree of protection:
IP20
Logistics
Dimensions:
30,50 x 35,70 x 100,00
Weight:
266.10lbs
Commodity Code:
85044095
ECCN number:
EAR99
