6SL3210-1PH21-4UL0_0

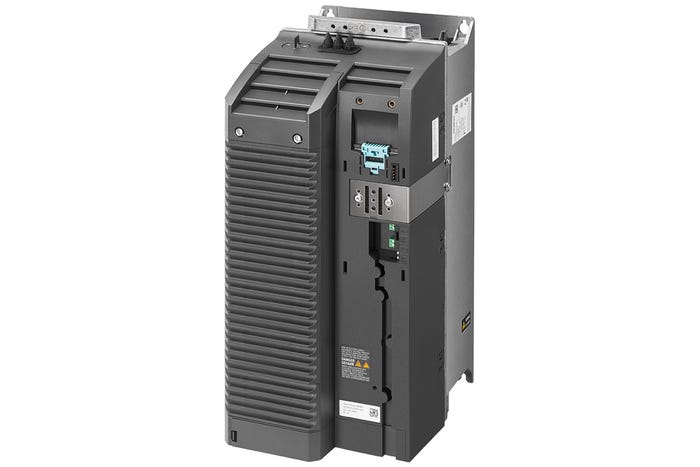

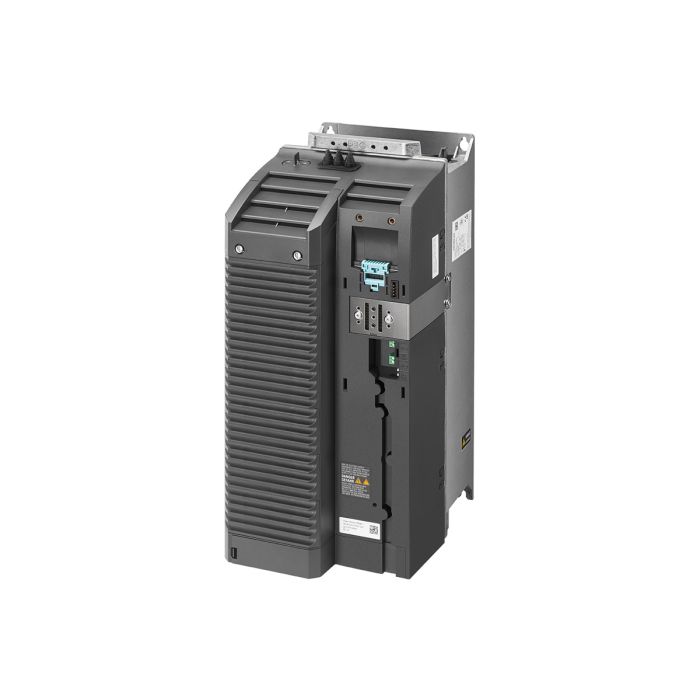

Siemens 6SL3210-1PH21-4UL0

SINAMICS G120 POWER MODULE PM240-2
Condition
How does requesting a repair work?
  1. Add the repair to your cart and complete your order
  2. You'll receive an RMA form by email
  3. Pack your product with the RMA form and send it to us
  4. We repair and test it, then return it in ~2 weeks
+ £250.00
Excl. Tax:
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

The SINAMICS G120 POWER MODULE PM240-2 is a robust and efficient solution designed for industrial applications where reliability and performance are paramount. With a voltage range of 500-690V AC and a maximum output frequency of 550 Hz, this power module is engineered to meet the demands of modern electrical systems.

This module features a built-in braking chopper, capable of handling high overloads of up to 7.5 kW for short durations. It is particularly suited for environments with variable ambient temperatures, ensuring consistent functionality from -20 to +50 degrees Celsius. The IP20 degree of protection guarantees safety and durability, making it a perfect fit for various industrial settings.

Compliance with CU firmware version V4.7 HF8 ensures that the module operates seamlessly and efficiently within your systems. Its compact dimensions of 472 x 200 x 237 mm allow for easy integration into existing installations, making the SINAMICS G120 PM240-2 an excellent choice for optimizing your electrical infrastructure.

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC500-690V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 7.5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 11kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
General
Brands:
SIEMENS
Manufacturer:
Siemens
Range:
SINAMICS
Subrange:
G120
Type of product:
Power modules
PLM
Product phase:
Active
Drive
Main Voltage:
500-690V AC
Main frequency:
50/60
Number of phases input:
3
Max. output frequency:
550
Max. output voltage:
550
Nom. output current:
14
Nom. power rating:
7.5
Degree of protection:
IP20
Degree of protection:
IP20
Logistics
Dimensions:
20,00 x 23,70 x 47,20
Weight:
37.04lbs
Commodity Code:
85044086
ECCN number:
3A225
