6SL3210-1PH31-2UL0

Repair

Select service ( £4,002.62 )

Description for 6SL3210-1PH31-2UL0

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC500-690V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 90KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 110kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

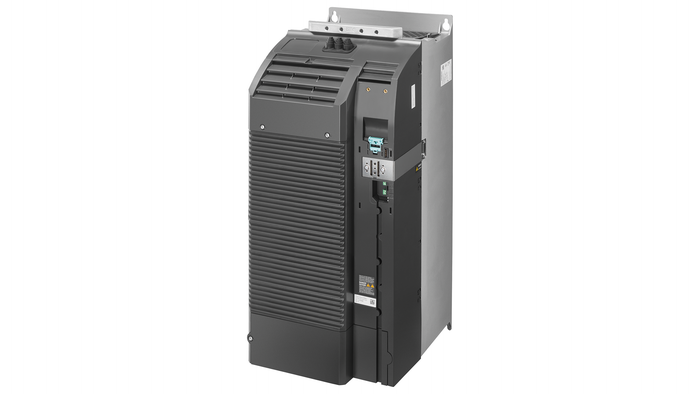

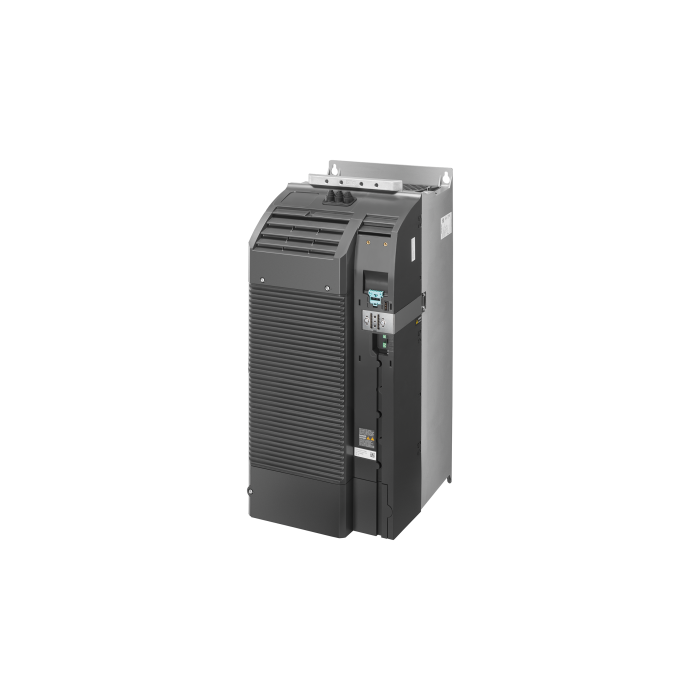

The SINAMICS G120 Power Module PM240-2 is a highly efficient power module designed for demanding industrial applications. It operates at a voltage range of 500-690V AC and features a built-in braking chopper, making it suitable for high overload conditions.

With a nominal power rating of 90 kW and the ability to handle high overloads of 200% for 3 seconds, this power module is engineered for reliability and performance. The robust design ensures operation in ambient temperatures ranging from -20 to +50 degrees Celsius, providing versatility in various environments.

Measuring 708 x 305 x 357 mm, this compact unit offers an IP20 protection degree, ensuring durability in industrial settings. Additionally, the module is compatible with the CU firmware version V4.7 HF8, enhancing its functionality. Trust Siemens' expertise in delivering quality and innovation with the SINAMICS G120 Power Module PM240-2.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-88%

Water use

-57%

Specifications

Brands:

SIEMENS

Manufacturer:

Siemens

Range:

SINAMICS

Subrange:

G120

Type of product:

Power modules

Product phase:

Active

Main Voltage:

500-690V AC

Main frequency:

50/60

Number of phases input:

Max. output frequency:

550

Max. output voltage:

550

Nom. output current:

115

Nom. power rating:

Degree of protection:

IP20

Degree of protection:

IP20

Dimensions:

30,50 x 35,70 x 70,80

Weight:

162.92lbs

Commodity Code:

85044086

ECCN number:

3A225
