Siemens 6SL3210-5BB21-1UV1

200-240V 1AC -10/+10% 47-63Hz rated power 1.1 kW with 150% overload…
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Condition
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

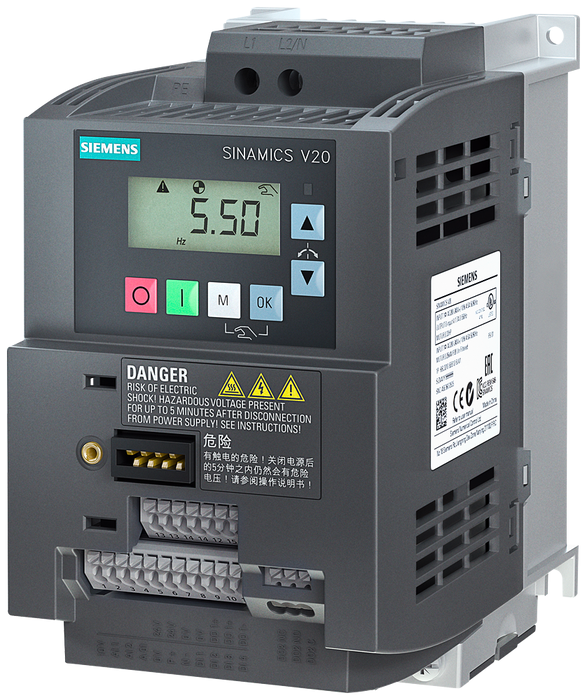

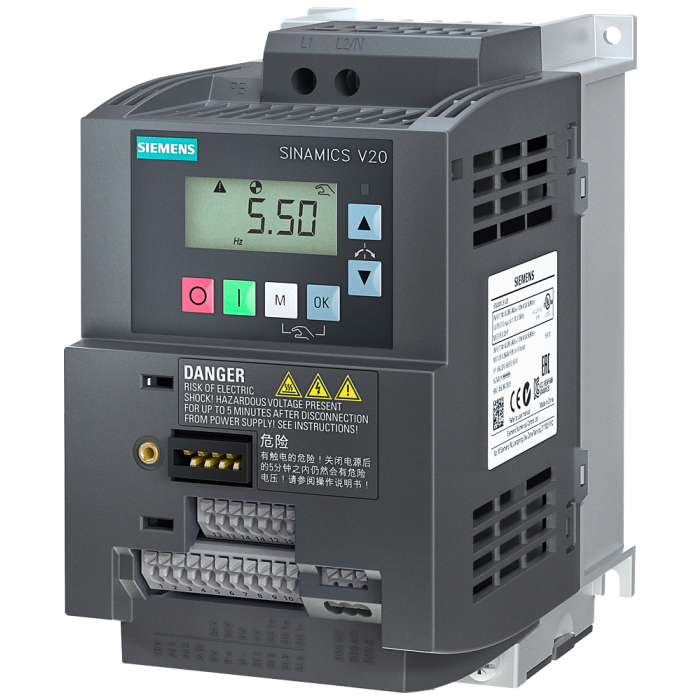

The Siemens 6SL3210-5BB21-1UV1 is a state-of-the-art Variable Frequency Drive designed for precise control and versatility in the electrical industry. This compact unit operates on a voltage range of 200-240V AC, with a power rating of 1.1 kW and is capable of handling a 150% overload for up to 60 seconds, ensuring reliability and performance in demanding applications.

It features a robust input/output configuration, including 4 digital inputs, 2 digital outputs, 2 analog inputs, and 1 analog output, making it suitable for various automation tasks. With a maximum output frequency of 550 Hz and compatibility with USS/MODBUS RTU fieldbus protocols, it provides seamless integration into existing systems.

The drive is housed in a durable design rated IP20 for protection, ensuring longevity even in challenging environments. Measuring 90 x 160 x 147 mm (WxHxD), it is perfect for both new installations and upgrades in your electrical setup. Trust Siemens for solutions that elevate your operational efficiency.

200-240V 1AC -10/+10% 47-63Hz rated power 1.1 kW with 150% overload for 60 sec. I/O: 4 DI, 2 DO,2 AI, 1 AQ fieldbus: USS/MODBUS RTU with built-in BOP protection: IP20/ UL open size: AC 90x160x147(WxHxD)
General
Manufacturer:
Siemens
Range:
SINAMICS
Subrange:
V20
Type of product:
Variable frequency drives
PLM
Product phase:
Active
Drive
Main Voltage:
200-240V AC
Main frequency:
50/60
Number of phases input:
1
Max. output frequency:
550
Max. output voltage:
240
Nom. output current:
6
Nom. power rating:
1.1
Degree of protection:
IP20
Degree of protection:
IP20
Logistics
Dimensions:
9,10 x 14,70 x 16,09
Weight:
1.98lbs
Commodity Code:
85044095
ECCN number:
3A225
EAN:
4042948676950
