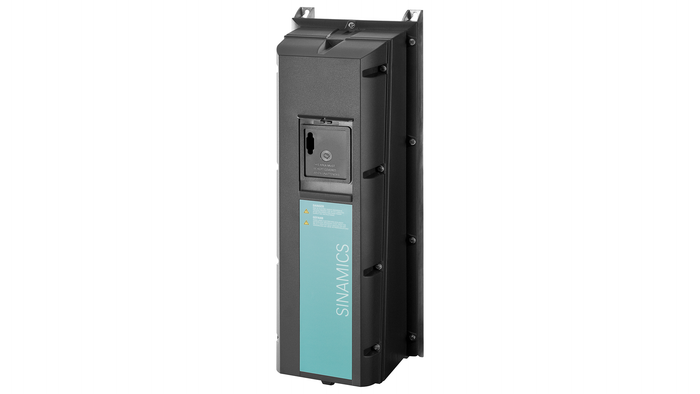

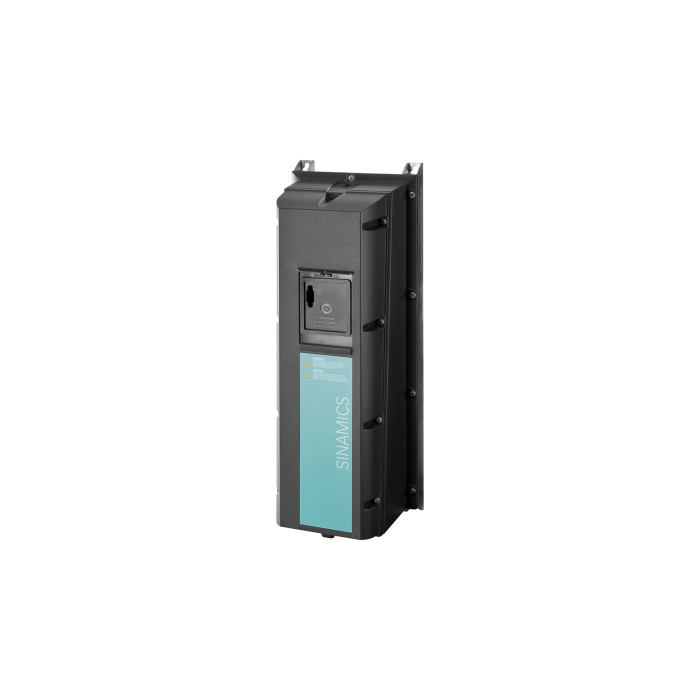

Siemens 6SL3223-0DE25-5AG1

SINAMICS G120P Power Module PM230 with integrated Class A filter…
Condition
How does requesting a repair work?
  1. Add the repair to your cart and complete your order
  2. You'll receive an RMA form by email
  3. Pack your product with the RMA form and send it to us
  4. We repair and test it, then return it in 3 weeks
+ £250.00
Excl. Tax
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

The SINAMICS G120P Power Module PM230 is engineered for high-performance applications, featuring an integrated Class A filter that ensures optimal operation in various environments. This power module operates at a voltage range of 380-480V AC and delivers consistent performance with a maximum output frequency of 550 Hz.


Designed to withstand challenging conditions, it has a degree of protection rated at IP55, making it suitable for both indoor and outdoor installations. With a compact design (540 x 180 x 249 mm) and an ambient temperature range of -10 to +40 °C, it fits seamlessly into diverse industrial settings.


The SINAMICS G120P PM230 supports a nominal power rating of 4 kW and can manage low overload conditions effectively, providing 5.5 kW at 150% for short bursts. This reliability is crucial for businesses that demand resilience and efficiency.


For operational versatility, it is compatible with CU230P-2 control units and can be integrated into existing setups effortlessly. Trust in Siemens' robust engineering and commitment to quality with this exceptional power module.

SINAMICS G120P Power Module PM230 with integrated Class A filter Degree of protection IP55/UL Type 12 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 5.5kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature -10 to +40 -¦C (LO) 540x 180x 249 (HxWxD), FSB without Control Unit and operating unit released for CU230P-2 Firmware version V4.3.2 or higher
General
Manufacturer:
Siemens
Range:
SINAMICS
Subrange:
G120P
Type of product:
Power modules
PLM
Product phase:
Active
Drive
Main Voltage:
380-480V AC
Main frequency:
50/60
Number of phases input:
3
Max. output frequency:
550
Max. output voltage:
550
Nom. output current:
13.2
Nom. power rating:
4
Degree of protection:
IP55
Degree of protection:
IP55
Logistics
Dimensions:
18,00 x 24,90 x 54,00
Weight:
13.01lbs
Commodity Code:
85044095
ECCN number:
N
EAN:
4042948671610
