6SL3223-0DE32-2AA0_0

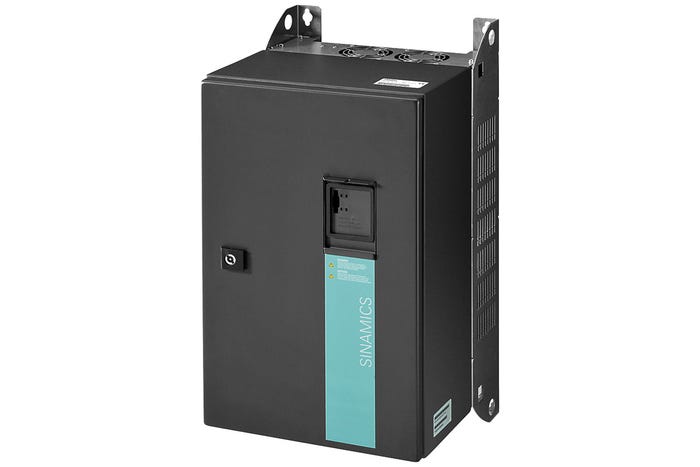

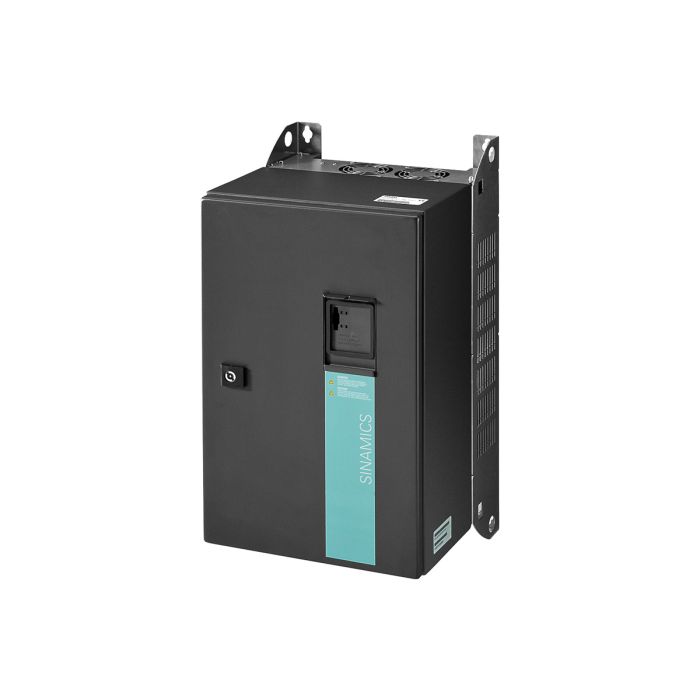

Siemens 6SL3223-0DE32-2AA0

SINAMICS G120P POWER MODULE PM230 W
Condition
How does requesting a repair work?
  1. Add the repair to your cart and complete your order
  2. You'll receive an RMA form by email
  3. Pack your product with the RMA form and send it to us
  4. We repair and test it, then return it in ~2 weeks
+ £275.80
Excl. Tax:
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

The SINAMICS G120P POWER MODULE PM230 is engineered for reliability and efficiency, featuring a built-in Class A filter that ensures compliance with IP55 and UL Type 12 protection standards. Operating within a voltage range of 380-480V AC and a frequency of 50/60 Hz, this power module is designed to perform in demanding industrial environments.

With a nominal power rating of 18.5 kW and a maximum output current of 45 A, the SINAMICS G120P delivers low overload capabilities—up to 22 kW for 110% for 60 seconds, and 100% for 240 seconds, making it suitable for a variety of applications. Its compact design, measuring 640 x 320 x 329 mm, ensures easy installation on a mini-pallet.

Designed for ambient temperatures ranging from 0 to +40 degrees Celsius, this power module is an ideal choice for maintaining operational efficiency without compromising on safety. Built in Germany by Siemens, the SINAMICS G120P is backed by years of expertise in the electrical industry.

SINAMICS G120P POWER MODULE PM230 WITH BUILT IN CL. A FILTER PROTECTION IP55 / UL TYPE12 3AC380-480V +10/-10% 47-63HZ OUTPUT LOW OVERLOAD: 22KW FOR 110% 60S,100% 240S AMBIENT TEMP 0 TO +40 DEG C(LO) 640 X 320 X 329 (HXBXT), FSD WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU230P-2 FIRMWARE-VERSION V4.3.2
General
Brands:
SIEMENS
Manufacturer:
Siemens
Range:
SINAMICS
Subrange:
G120P
Type of product:
Power modules
PLM
Product phase:
Active
Predecessor:
6SE9524-3DS55
Drive
Main Voltage:
380-480V AC
Main frequency:
50/60
Number of phases input:
3
Max. output frequency:
550
Max. output voltage:
550
Nom. output current:
45
Nom. power rating:
18.5
Degree of protection:
IP55
Degree of protection:
IP55
Logistics
Dimensions:
32,00 x 32,90 x 64,00
Weight:
67.90lbs
Commodity Code:
85044086
ECCN number:
3A225
