6SL3517-1BE14-3AM0

Description for 6SL3517-1BE14-3AM0

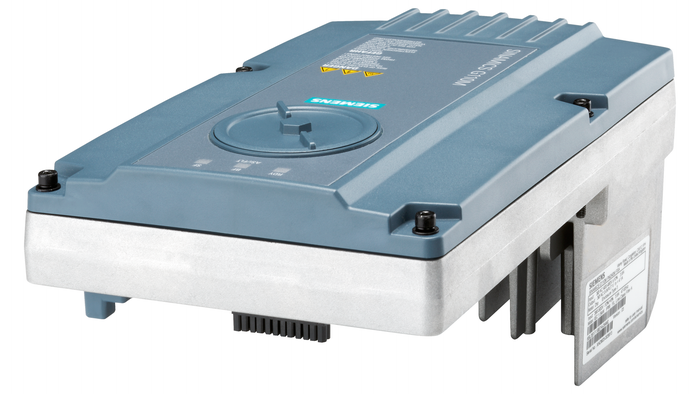

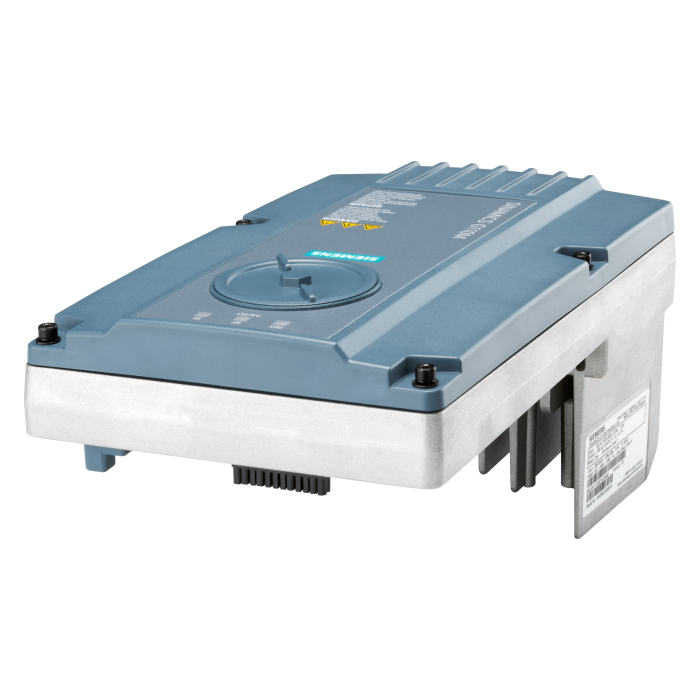

SINAMICS G110M Power Module PM240M with integrated Class A filter Degree of protection IP65 380-480 V 3 AC+10/-10% 47-63Hz Power high overload: 1.5kW at 200% 3s, 150% 57S, 100% 240S SD/MMC card slot Ambient temperature -10 to +55 -¦C 135x 161x 270 (HxWxD), FSA without Control Unit

Introducing the SINAMICS G110M Power Module PM240M, engineered for high-performance applications with a seamless design that incorporates a Class A filter. This power module operates effectively at a main voltage of 380-480V AC and supports a frequency range of 50/60 Hz, with an impressive maximum output voltage of 550 V and frequency of 550 Hz.

With a degree of protection rated at IP66, this unit ensures robust performance in challenging environments. Its dimensions of 135 x 161 x 270 mm make it compact while providing crucial features such as a high overload capacity of up to 1.5 kW for short durations. Additionally, the ambient temperature range of -10 to +55 °C makes it suitable for diverse conditions.

Built for reliability and performance, the SINAMICS G110M is your solution for efficient power management in demanding applications. Upgrade your operation with proven technology from Siemens, a trusted name in the electrical industry.

Positive Results

When you choose JCertified refurbished electronics, you save on water, raw materials, and CO₂ needed for the production of new electronics. Check below to see exactly how much you save with this specific refurbished product:

CO2 eq

-63%

Resource use minerals and metals

-89%

Water use

-57%

Specifications

Brands:

SIEMENS

Manufacturer:

Siemens

Range:

SINAMICS

Subrange:

G110M

Type of product:

Power modules

Product phase:

Phase-Out

Main Voltage:

380-480V AC

Main frequency:

50/60

Number of phases input:

Max. output frequency:

550

Max. output voltage:

550

Nom. power rating:

1.5

Degree of protection:

IP66

Degree of protection:

IP66

Dimensions:

16,10 x 27,00 x 13,50

Weight:

3.97lbs

Commodity Code:

85044095

ECCN number:
