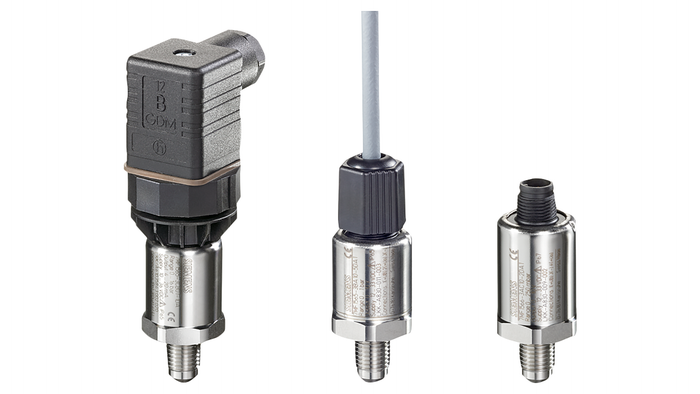

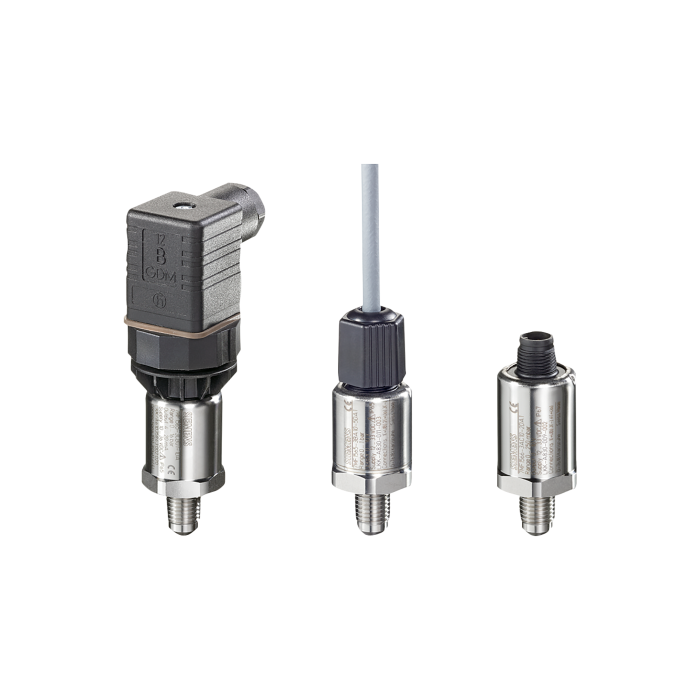

Siemens 7MF1567-3DA00-1AA1

SITRANS P220 Transmitters for pressure and absolute pressure
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Condition
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

The SITRANS P220 Transmitters are designed specifically for measuring pressure and absolute pressure in high-demand environments. This fully welded version is ideal for high-pressure and refrigerant applications, ensuring durability and reliability.

With a non-linearity specification of only 0.25 percent typically, these transmitters deliver exceptional accuracy. The wetted parts are crafted from stainless steel, providing excellent resistance against corrosion and wear, while the non-wetted parts are also made of robust stainless steel.

The measuring range for gauge pressure is from 0 to 100 bar, and they can withstand overload pressures up to 250 bar, making them suitable for various industrial applications. The output signal is a 4 to 20 mA two-wire connection, powered by a DC supply of 7 to 33 V.

Electrical connections utilize a plug to DIN EN 175301-803-A standard, complemented by a M16 thread for a packed gland with connector. The process connection is a G1/2" male to EN 837-1, aligning with standard metric pressure ranges.

This standard version of the SITRANS P220 is built to perform excellently across various applications, making it a valuable addition to any industrial setup. Choose the SITRANS P220 for precision and reliability in your operations.

SITRANS P220 TRANSMITTERS FOR PRESSURE AND ABSOLUTE PRESSURE FULLY WELDED VERSION FOR HIGH-PRESSURE AND REFRIGERANT APPLICATIONS NON-LINEARITY: 0,25 PERCENT (TYPICALLY) WETTED PARTS MATERIAL: STAINLESS STEEL; NON-WETTED PARTS MATERIAL: STAINLESS STEEL MEASURING RANGE FOR GAUGE: 0 TO 100 BAR, OVERLOAD- PRESSURE 250 BAR OUTPUT SIGNAL: 4 TO 20 MA TWO-WIRE CONNECTION, POWER SUPPLY DC 7 TO 33 V WITHOUT EXPLOSION PROTECTION ELECTRICAL CONNECTION: PLUG TO DIN EN 175301-803-A, THREAT FOR PACKED GLAND M16 (WITH CONNECTOR) PROCESS CONNECTION: G1/2" MALE TO EN 837-1 (1/2" BSP MALE) (STANDARD FOR METRIC PRESSURE RANGES MBAR, BAR) STANDARD VERSION STANDARD VERSION
General
Manufacturer:
Siemens
Range:
SITRANS
Type of product:
Power supplies
PLM
Product phase:
Active
Logistics
Dimensions:
14,9 x 9 x 4,2
Weight:
1.10lbs
Commodity Code:
85371099
ECCN number:
N
EAN:
4047623602835
