Siemens 7MF1565-3BG00-1AA1

SITRANS P200 Transmitters for pressure and absolute pressure for…

Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Condition

Repair (incl. JCertified refurbishment)

Unavailable

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

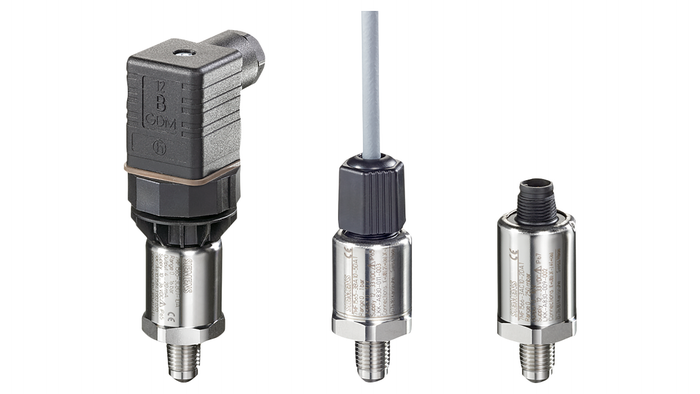

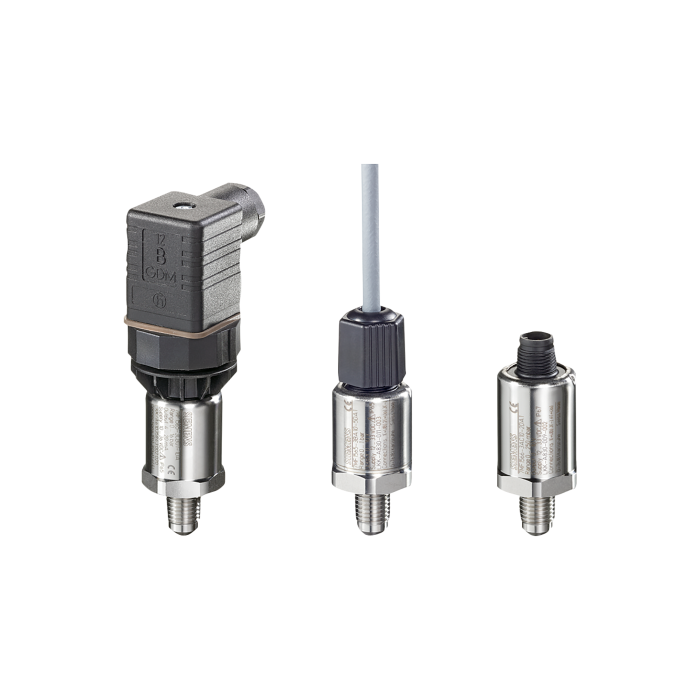

The SITRANS P200 Transmitter by Siemens is designed for precise pressure measurements in various industrial applications. This transmitter is suitable for both gauge and absolute pressure measurements, making it a versatile solution for your pressure sensing needs.

With a non-linearity specification of just 0.25% typically, the SITRANS P200 ensures high accuracy and reliability. Its wetted parts are made of durable ceramics and stainless steel, complemented by standard sealing materials, ensuring long-term performance even in challenging environments.

The measuring range for gauge pressure extends from 0 to 6 bar, with an overload pressure capability of up to 15 bar. The transmitter features a 4 to 20 mA output signal, utilizing a two-wire connection powered by a DC supply ranging from 7 to 33 V, eliminating the need for explosion protection.

Electrical connections are standardized, utilizing a plug to DIN EN 175301-803-A, and facilitating process connections with a G1/2" male fitting compliant with EN 837-1. The sealing material used between the sensor and housing is Viton (FPM), ensuring optimal sealing and durability.

Choose the SITRANS P200 for reliable and accurate pressure measurements in your applications. Its robust design, compatibility with industry standards, and precise output makes it an essential component for any electrical engineering project.

SITRANS P200 Transmitters for pressure and absolute pressure for general applications Non-linearity: 0,25 percent (typically) wetted parts material:ceramics, stainless steel plus sealing material; non-wetted parts material: stainless steel Measuring range for gauge: 0 to 6 bar, Overload- pressure 15 bar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland M16 (with connector) Process connection: G1/2" male to EN 837-1 (1/2" BSP male) (standard for metric pressure ranges mbar, bar) Sealing material between sensor and housing: Viton (FPM, Standard) Standard version

General

Manufacturer:

Siemens

Range:

SITRANS

Type of product:

Power supplies

PLM

Product phase:

Active

Logistics

Weight:

0.44lbs

Commodity Code:

85389091

ECCN number:

EAN:

4019169848763
