Siemens 7MF1565-3CA00-1AA1

SITRANS P200 Transmitters for pressure and absolute pressure for…

Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Condition

Repair (incl. JCertified refurbishment)

Unavailable

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

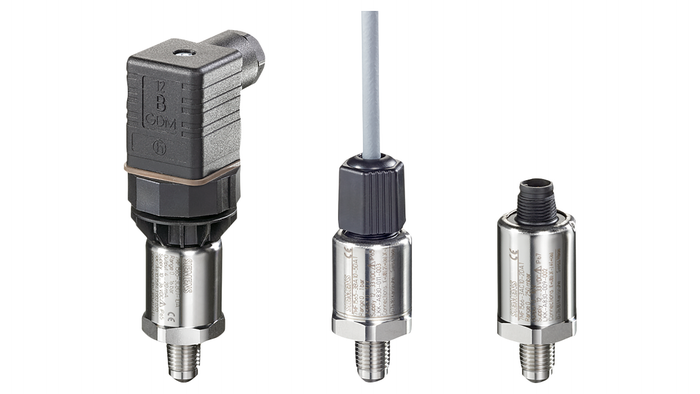

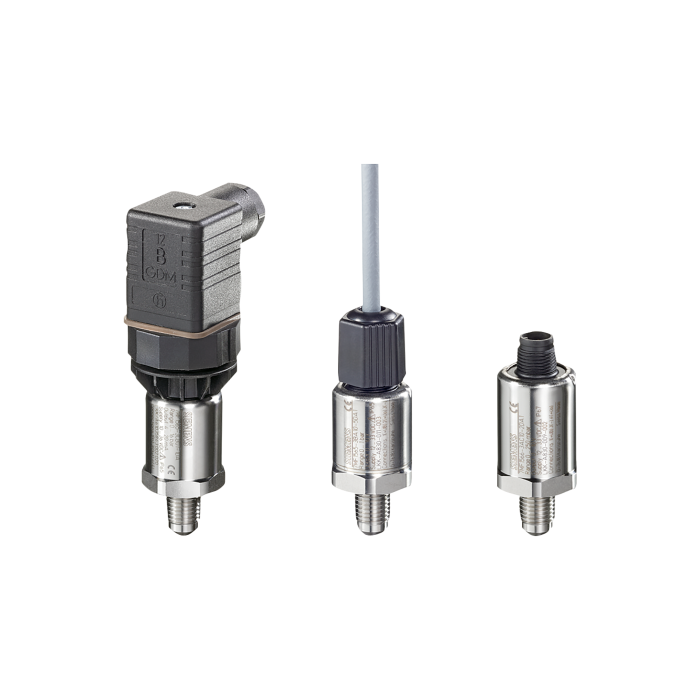

The SITRANS P200 Transmitter by Siemens is designed to provide accurate pressure measurements for a variety of general applications. With a non-linearity rate of just 0.25 percent, this transmitter ensures reliable performance in even the most demanding environments.

Constructed with high-quality wetted parts made of ceramics and stainless steel, along with durable sealing materials, the SITRANS P200 delivers exceptional durability and functionality. Its output signal ranges from 4 to 20 mA, utilizing a two-wire connection powered by a DC supply of 7 to 33 V.

Featuring a measuring range for gauge pressure from 0 to 10 bar and an overload capacity of 25 bar, this transmitter offers versatility for various applications. The electrical connection complies with DIN EN 175301-803-A standards, and the process connection is a G1/2" male thread as per EN 837-1, standard for metric pressure ranges.

Built in Germany, the SITRANS P200 is equipped with Viton sealing materials between the sensor and housing, ensuring optimal protection and performance in challenging conditions.

SITRANS P200 Transmitters for pressure and absolute pressure for general applications Non-linearity: 0,25 percent (typically) wetted parts material:ceramics, stainless steel plus sealing material; non-wetted parts material: stainless steel Measuring range for gauge: 0 to 10 bar, Overload- pressure 25 bar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland M16 (with connector) Process connection: G1/2" male to EN 837-1 (1/2" BSP male) (standard for metric pressure ranges mbar, bar) Sealing material between sensor and housing: Viton (FPM, Standard) Standard version

General

Manufacturer:

Siemens

Range:

SITRANS

Type of product:

Power supplies

PLM

Product phase:

Active

Logistics

Dimensions:

16,50 x 4,50 x 7,20

Weight:

0.44lbs

Commodity Code:

85389091

ECCN number:

EAN:

4019169848770
